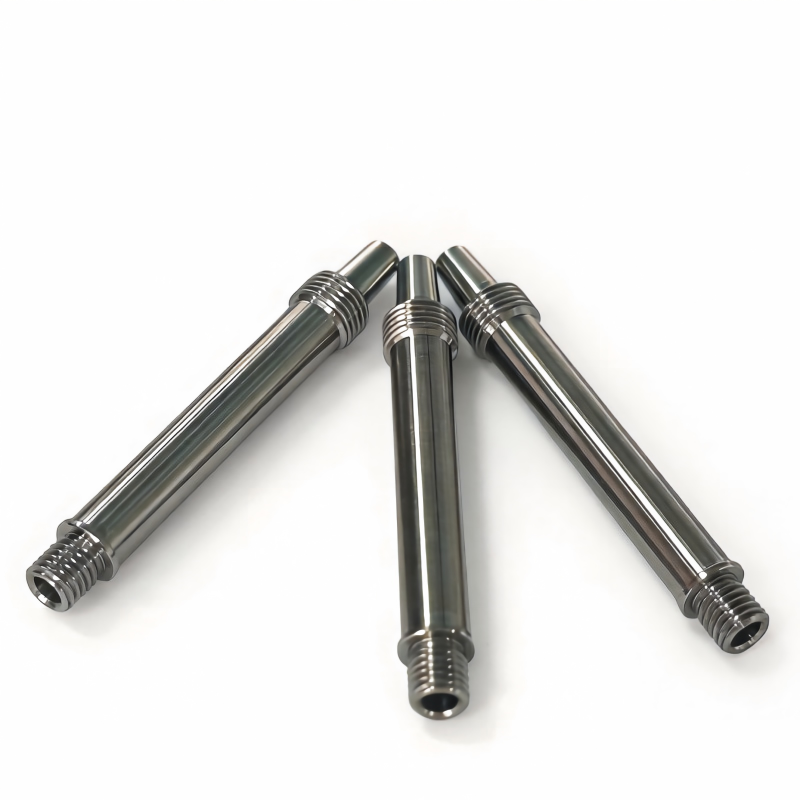

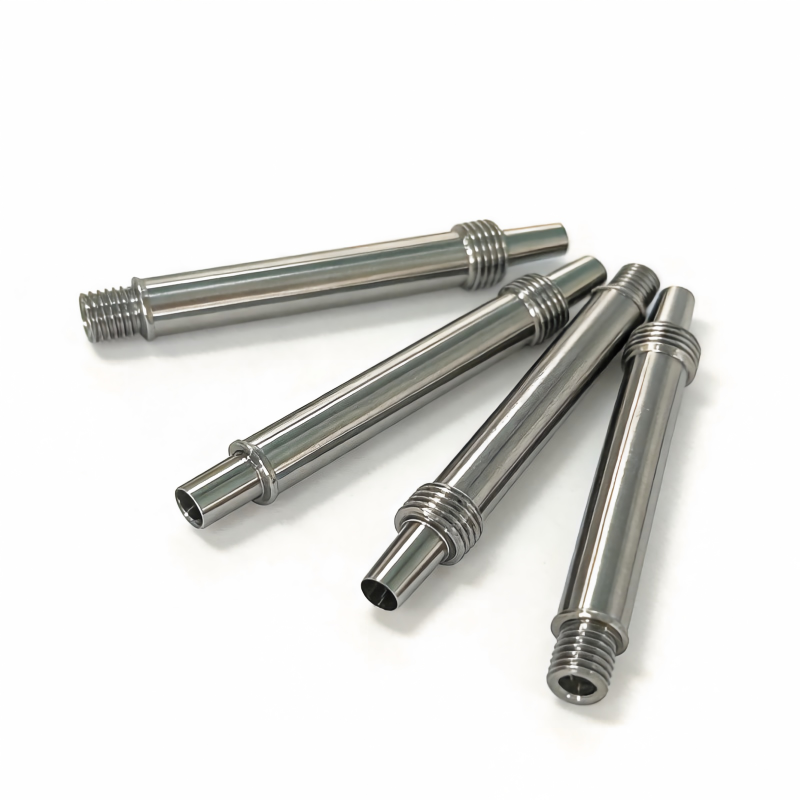

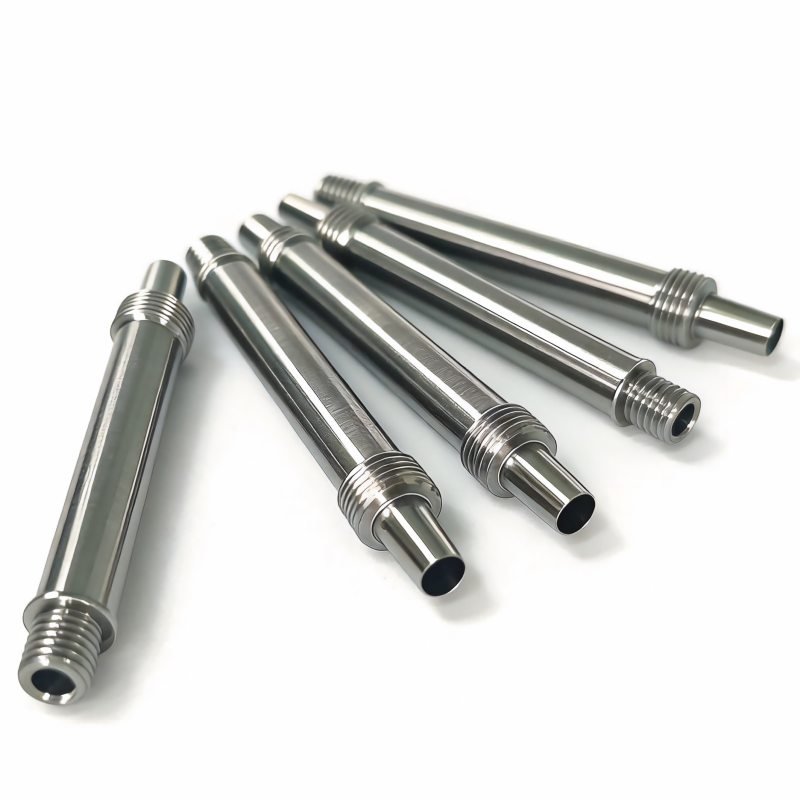

High Precision Stainless Steel Automotive Water Pipe Connector CNC Machining

1. Material:
Made from premium stainless steel or customized metal alloys.
2. Shape:
Designed with a tapered head, precision external threads, and a streamlined cylindrical body to ensure secure installation, reliable sealing, and stable fluid transmission.
3. Size Range:
Outer diameter is typically within the range of Φ1–Φ5 mm, and height 31–50 mm can be customized; internal hole diameter and step dimensions are precisely matched according to relay specifications, and OEM customization is supported.
4. Internal Design:
The precisely machined internal bore provides smooth coolant flow, reduces pressure loss, and improves the overall efficiency and reliability of automotive fluid systems.
5. Surface Treatment:
Processed with precision polishing, passivation, electroplating, or other customized surface treatments to enhance wear resistance, corrosion protection, and product appearance.
6. Manufacturing Process:
Manufactured using high-precision turning and Swiss-type machining technology with tolerances up to ±0.001 mm, followed by strict quality inspection to ensure consistent performance and superior dimensional accuracy

Categories: ,
Description

1. Premium Material

Made from high-quality stainless steel, this automotive water pipe connector offers excellent corrosion resistance, strength, and durability for harsh environments.

2. Precision CNC Machining

Manufactured with CNC turning and Swiss-type machining technology, achieving ±0.001mm accuracy with precise threads, smooth surfaces, and consistent quality.

3. Reliable Sealing Performance

Designed with precision threads and optimized sealing structures to ensure secure connections, leak prevention, and stable fluid transmission.

4. High Pressure & Temperature Resistance

Built to withstand heat, pressure fluctuations, and mechanical stress in automotive cooling systems and fluid applications.

5. Wide Application Compatibility

Suitable for automotive coolant systems, hydraulic systems, fuel lines, and industrial fluid control applications.

6. Custom OEM & ODM Service

Caiyi Precision provides customized solutions including materials, dimensions, threads, and surface treatments to meet global customer requirements.
