Precision Metal Threaded Shaft Parts
Click to enlarge
Precision Metal Threaded Shaft Parts
Home Automotive Swiss-type Machining Others Precision Metal Threaded Shaft Parts
OEM Precision-Machined | Metal Structural Parts for Watch Camera
OEM Precision-Machined | Metal Structural Parts for Watch Camera
Back to products
Valve Assembly Valve Stem Precision Stainless Steel Machined Shaft
Valve Assembly Valve Stem Precision Stainless Steel Machined Shaft

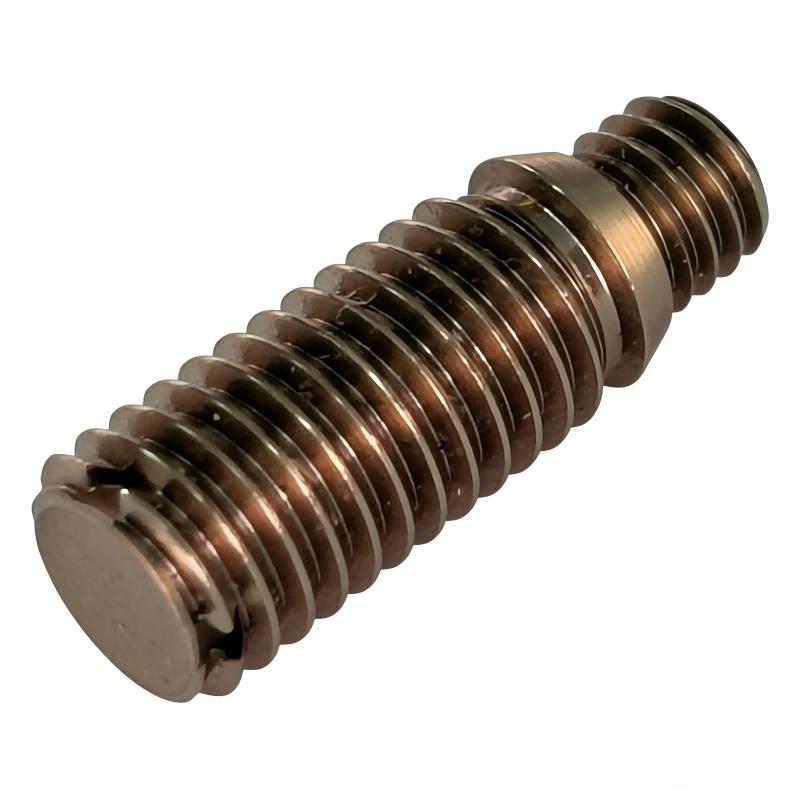

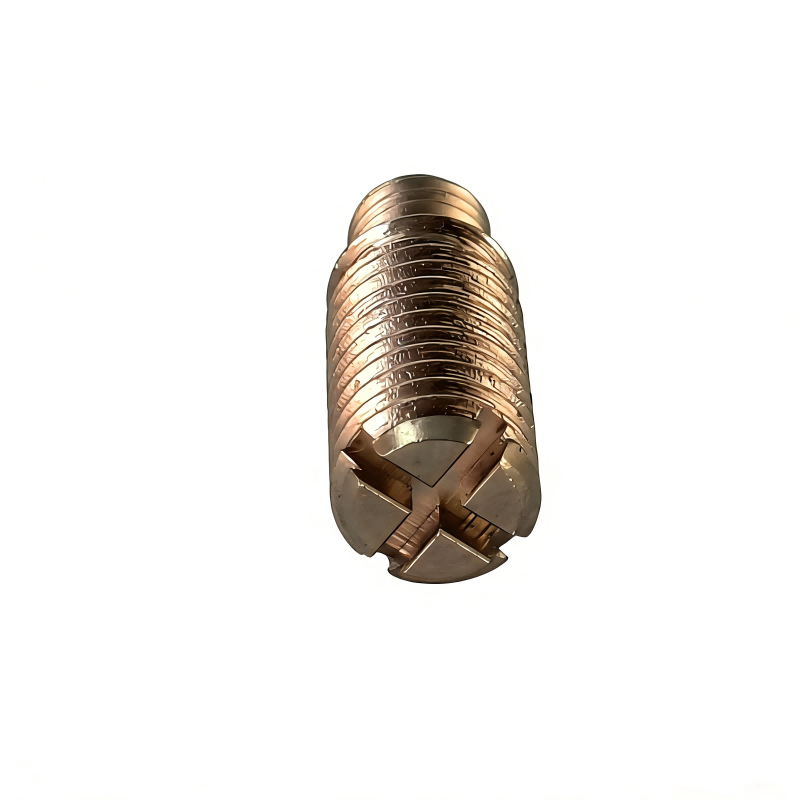

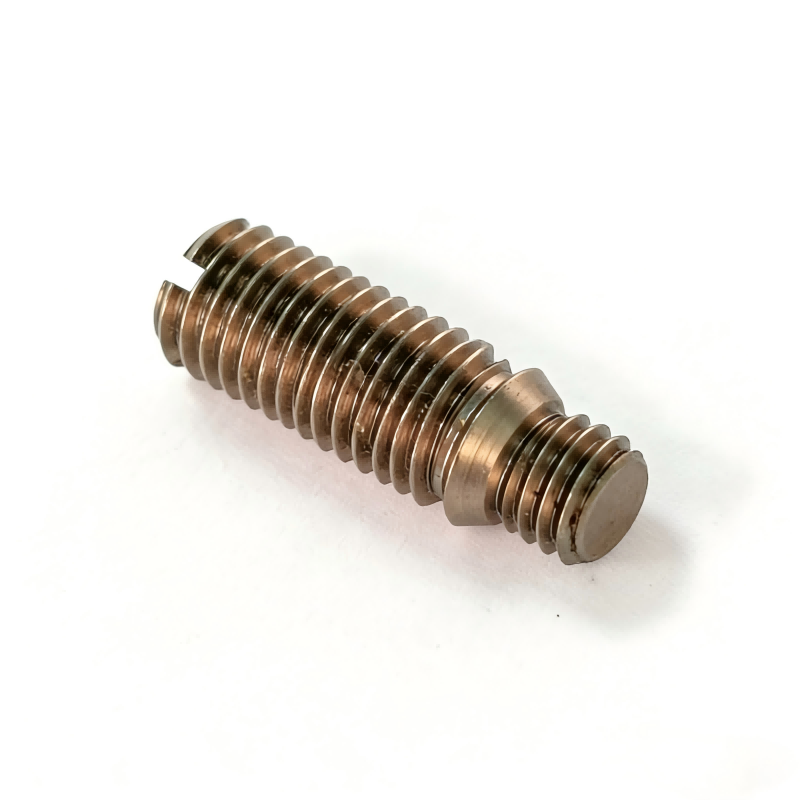

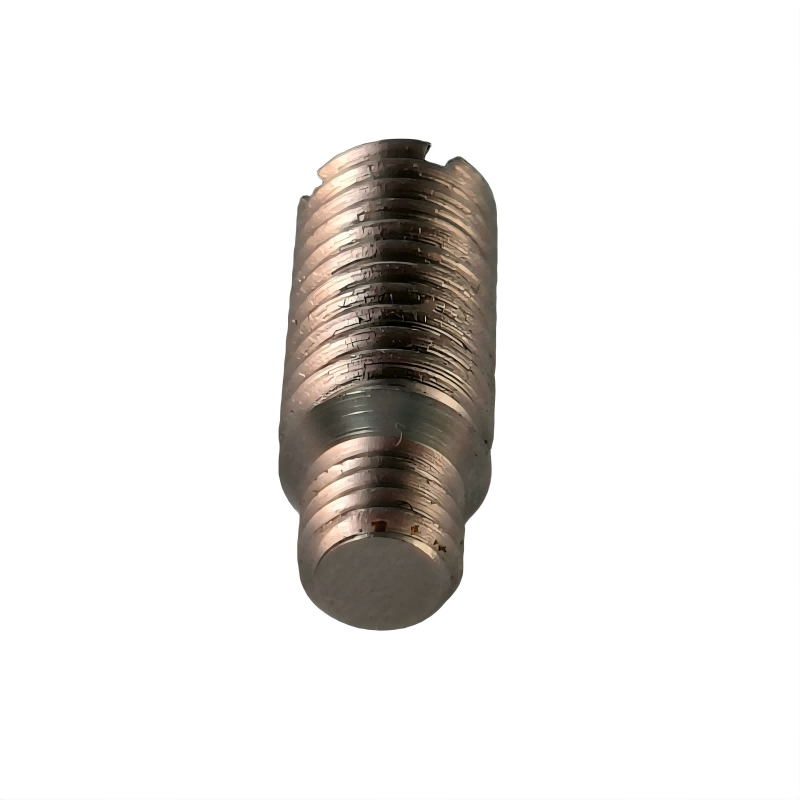

Precision Metal Threaded Shaft Parts

Material: Stainless steel, alloy steel, or copper alloy

Shape: Overall cylindrical double-ended structure, one end is fully threaded, the other end has a stepped thread structure.

Dimensions: Diameter: Φ5mm, Height: 20mm (customizable)

Internal Design: Solid internal structure with clear and complete thread profile, even stress distribution, effectively improving connection stability and service life.

Surface Treatment: Finely treated surface, with options for polishing, electroplating, blackening, or passivation, enhancing appearance while improving rust resistance, corrosion resistance, and wear resistance.

Manufacturing Process: High-precision turning is used, with strict tolerance control; post-processing dimensional and visual inspections ensure product consistency and reliability.

Categories: Automotive Swiss-type Machining, Others Tags: CNC machined metal components, metal threaded shaft parts
Share:
  • Description
  • Reviews (0)
Description

These metal threaded shaft parts are designed for precision fastening in industrial machinery and mechanical assemblies. The dual-end threaded design ensures easy and stable installation while allowing flexibility in application.

High-Strength Construction

Crafted from high-strength materials, these threaded shaft parts provide excellent tensile strength, shear resistance, and vibration stability, making them ideal for heavy-duty industrial environments.

Smooth and Precise Threading

Each part features precision-cut threads with uniform pitch, ensuring smooth engagement and even load distribution. This guarantees long-term performance and reduces wear over time.

Durable Surface Treatments

We offer multiple surface treatment options, including polishing, electroplating, and passivation, which enhance corrosion resistance and wear durability, ensuring these components stand up to harsh environments.

Fully Customizable Solutions

Our metal threaded shaft parts are fully customizable. Choose from various sizes, thread standards, and finishes to meet your specific requirements. These parts are ideal for use in mechanical equipment, automation systems, and industrial assemblies.

🏗️ Ideal for Industrial Use

Whether you’re working in automation, mechanical equipment, or industrial assemblies, our precision metal threaded shaft parts provide the reliability and strength needed for long-lasting performance.
