High-Precision CNC Machined Automotive Ball Screw Nut Components

1. Material: Carbon steel, stainless steel, aluminum alloy, etc.

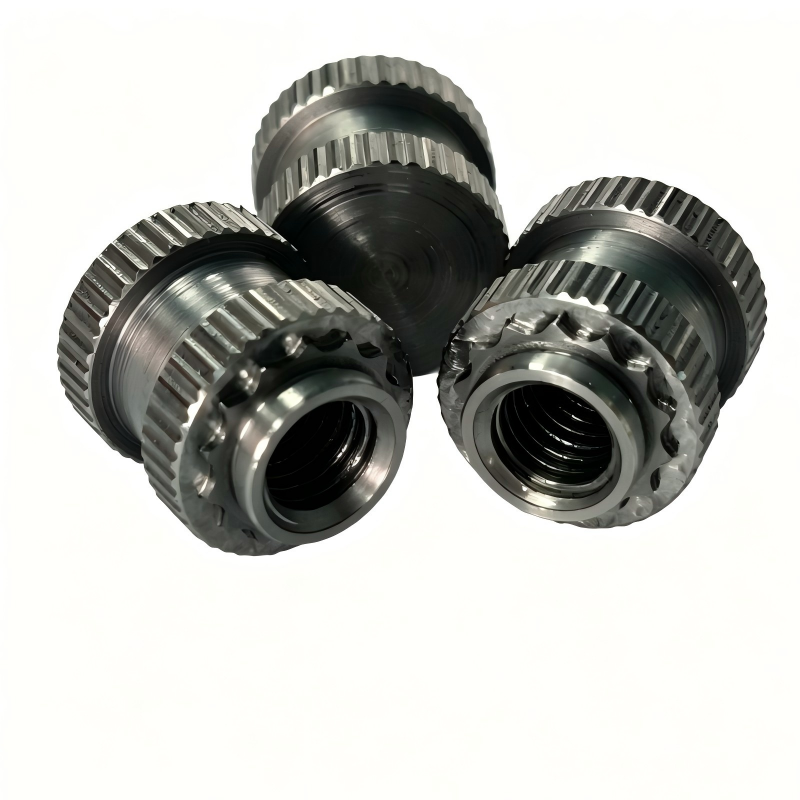

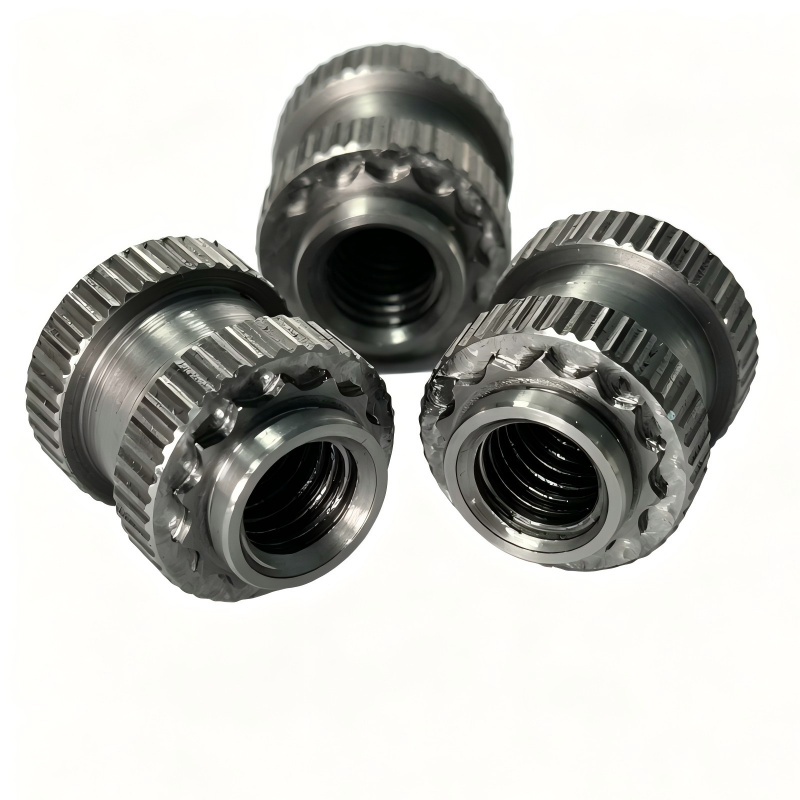

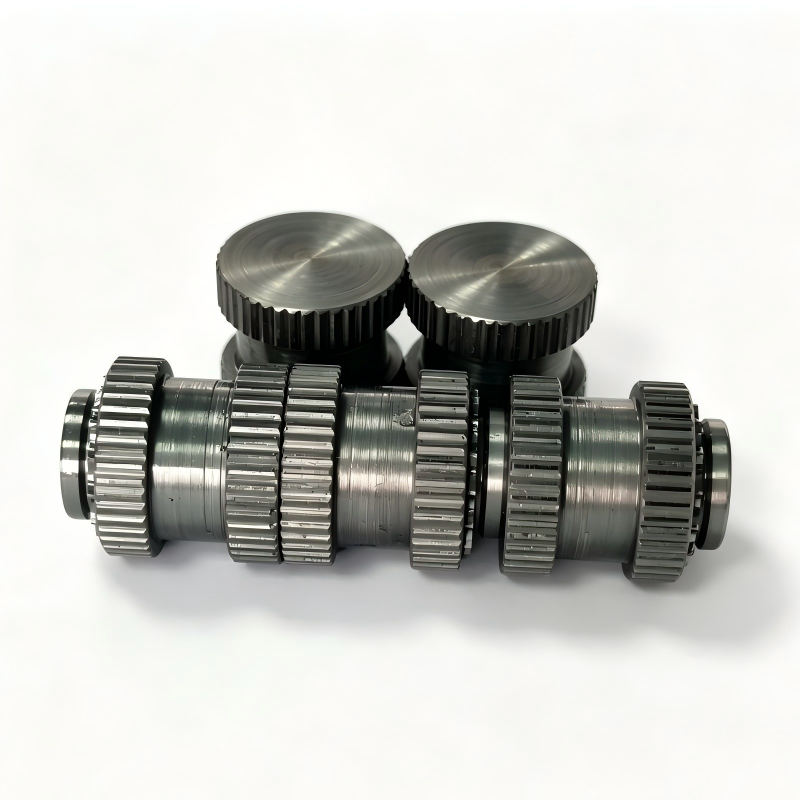

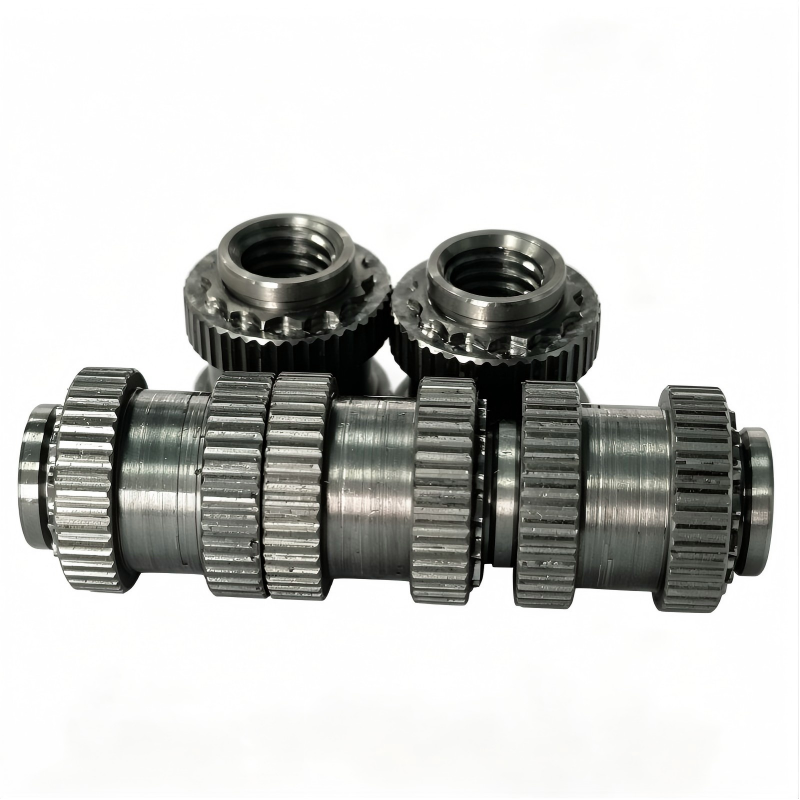

2. Shape: A stepped cylindrical component featuring distinct knurling or anti-slip texturing on the outer surface; symmetrical top and bottom sections with a transitional cylindrical segment in the middle.
3. Size Range: Diameter approx. 8mm–25mm; height approx. 10mm–30mm.
4. Internal Design: Features an internal coaxial threaded bore designed for bolt fastening or shaft mating, providing high-strength connection and positioning capabilities.
5. Surface Treatment: Deburring; light polishing or barrel finishing; some batches may undergo anti-rust treatment (e.g., black oxide or phosphating) to enhance corrosion resistance and visual uniformity.
6. Manufacturing Process: CNC turning, external knurling, internal hole tapping/threading, secondary deburring and cleaning, and final dimensional inspection (via CMM or optical comparator).

Categories: , ,
Description

1. Precision Manufacturing

Manufactured using advanced Swiss-type machining technology, these automotive ball screw nut components achieve exceptional dimensional accuracy and consistency for demanding applications.

2. Premium Material Selection

Made from high-quality alloy steel or stainless steel, the components provide excellent strength, wear resistance, and long-term durability in automotive systems.

3. Tight Tolerance Control

With precision tolerances as tight as ±0.001mm, every ball screw nut is engineered to ensure smooth motion, reliable positioning, and stable performance.

4. Superior Surface Finish

Advanced grinding and surface treatment processes enhance corrosion resistance, reduce friction, and improve the overall service life of the component.

5. Custom OEM & ODM Solutions

Custom designs, dimensions, materials, and surface finishes are available to meet the specific requirements of OEM and aftermarket automotive projects.

6. Wide Automotive Applications

These high-precision ball screw nut components are widely used in automotive transmission systems, steering mechanisms, electric actuators, and other critical motion-control applications, delivering reliable and efficient performance.
