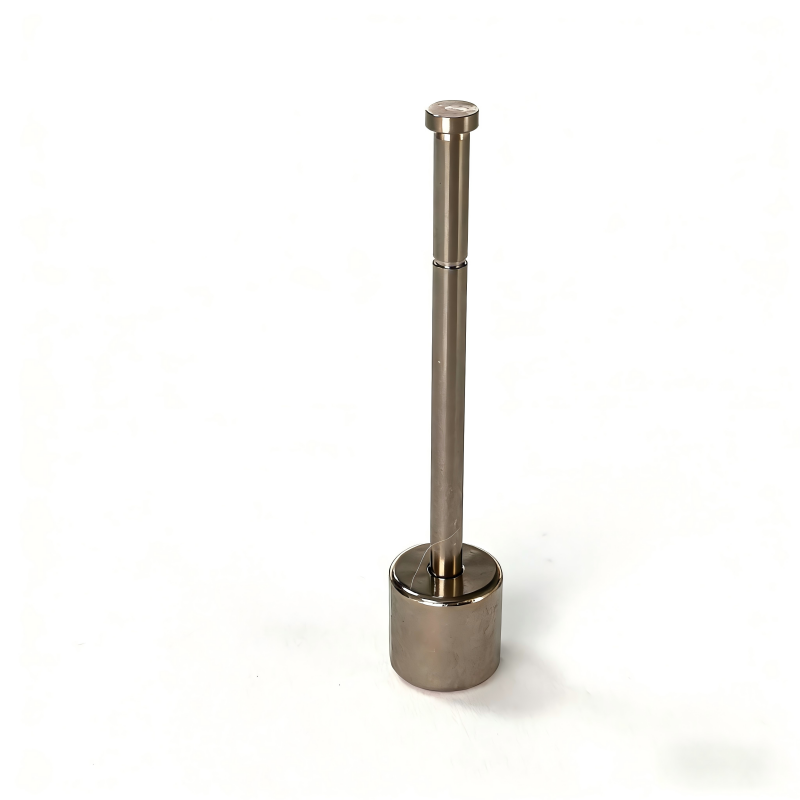

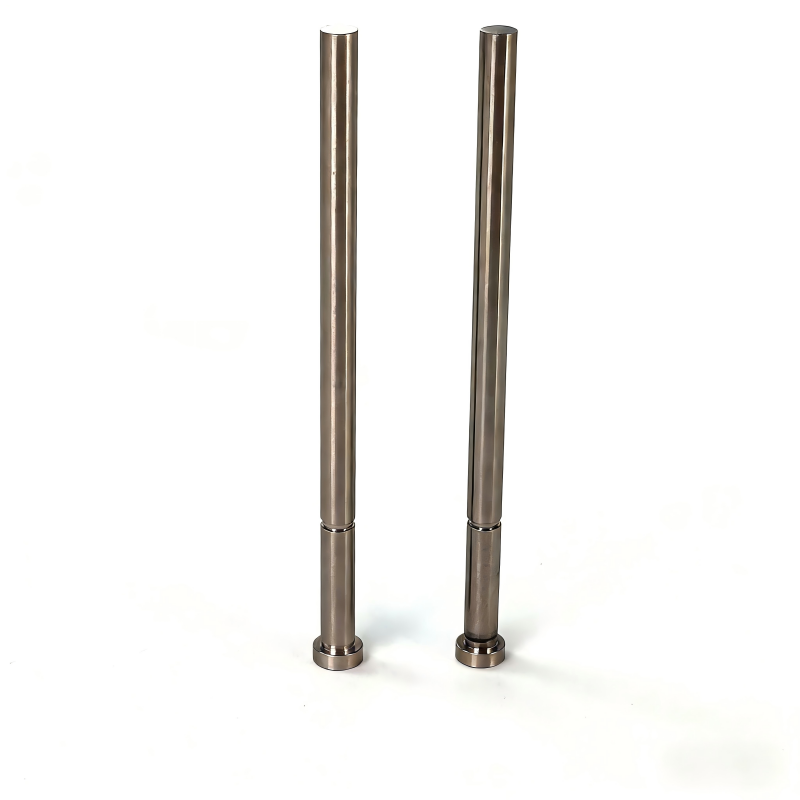

Valve Assembly Valve Stem Precision Stainless Steel Machined Shaft

Material: Stainless steel (such as SUS304/SUS316) or alloy steel

Shape: Overall precision cylindrical shaft structure, with stepped shafts, locating shoulders, or end flanges in some areas.

Size Range: Diameter typically ranges from Φ3 mm to Φ30 mm; length can be customized.

Internal Design: The valve stem has a dense internal structure with no cavities, ensuring high strength and fatigue resistance.

Surface Treatment: Surfaces can be finely polished, mirror-polished, passivated, or finely ground to reduce the coefficient of friction.

Manufacturing Process: Machined using high-precision turning and precision grinding processes, with strict tolerance control for key dimensions; combined with full-process quality inspection.

Categories: , Tag:
Description

High-Precision Valve Stem Engineering

This stainless steel machined shaft ensures smooth linear movement during valve operation. The precise geometry supports accurate opening and closing control under continuous use.

Durable Stainless Steel Construction

Premium stainless steel provides strong corrosion resistance and structural stability. The material performs reliably in high-pressure and harsh operating environments.

Optimized Shaft Structure

The cylindrical shaft design improves mechanical strength and alignment accuracy. It maintains stability and consistency during long-term valve operation.

Fine Surface Finish Performance

Polished and finely finished surfaces reduce friction during movement. This improves sealing performance and extends overall service life.

Advanced CNC Machining Accuracy

High-end CNC machining guarantees tight tolerances and consistent dimensions. Each batch maintains stable quality for reliable assembly integration.

OEM Customization Support

We provide OEM-customized stainless steel machined shaft solutions. Designs adapt to specific valve assemblies and application requirements.
