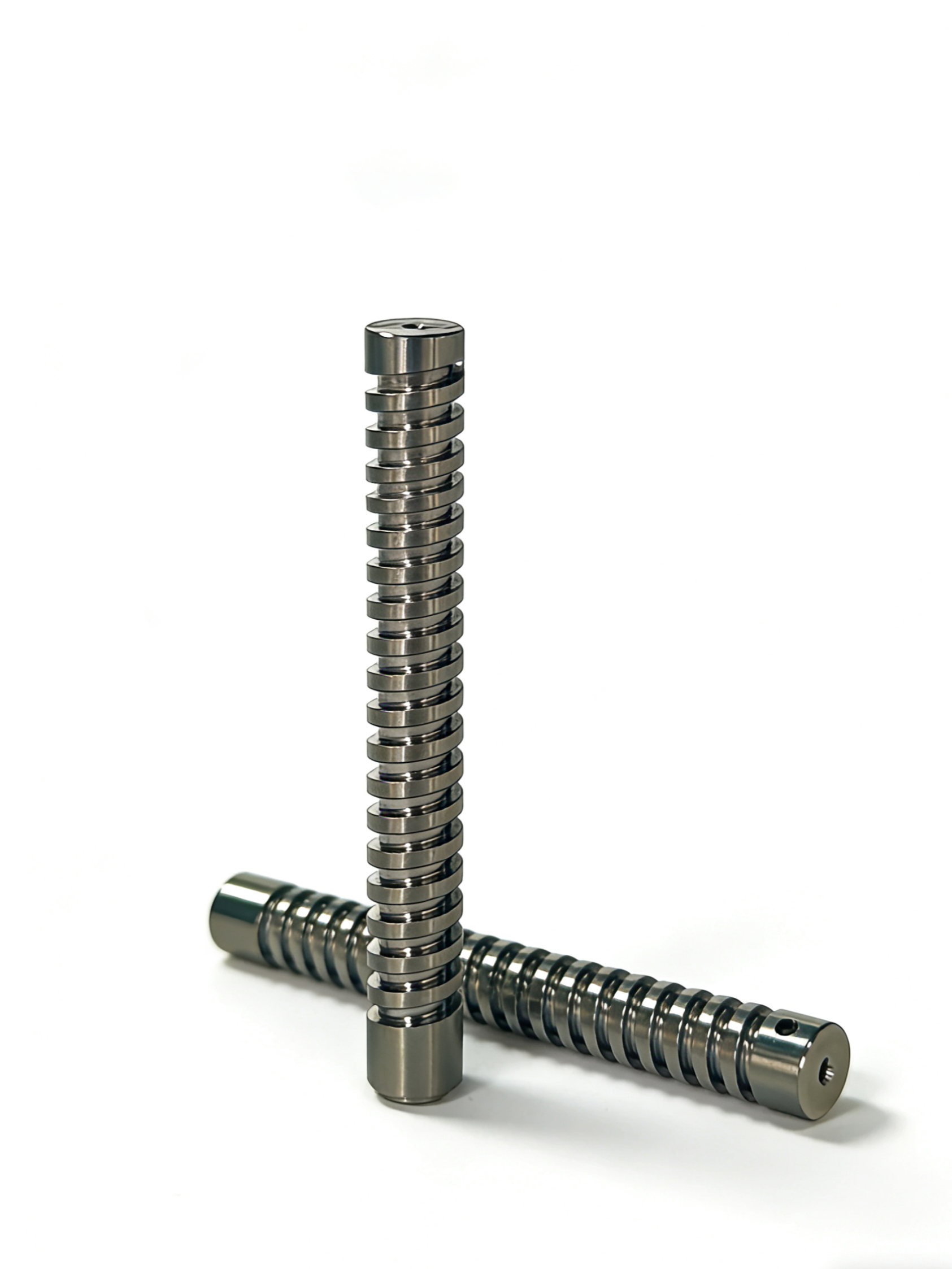

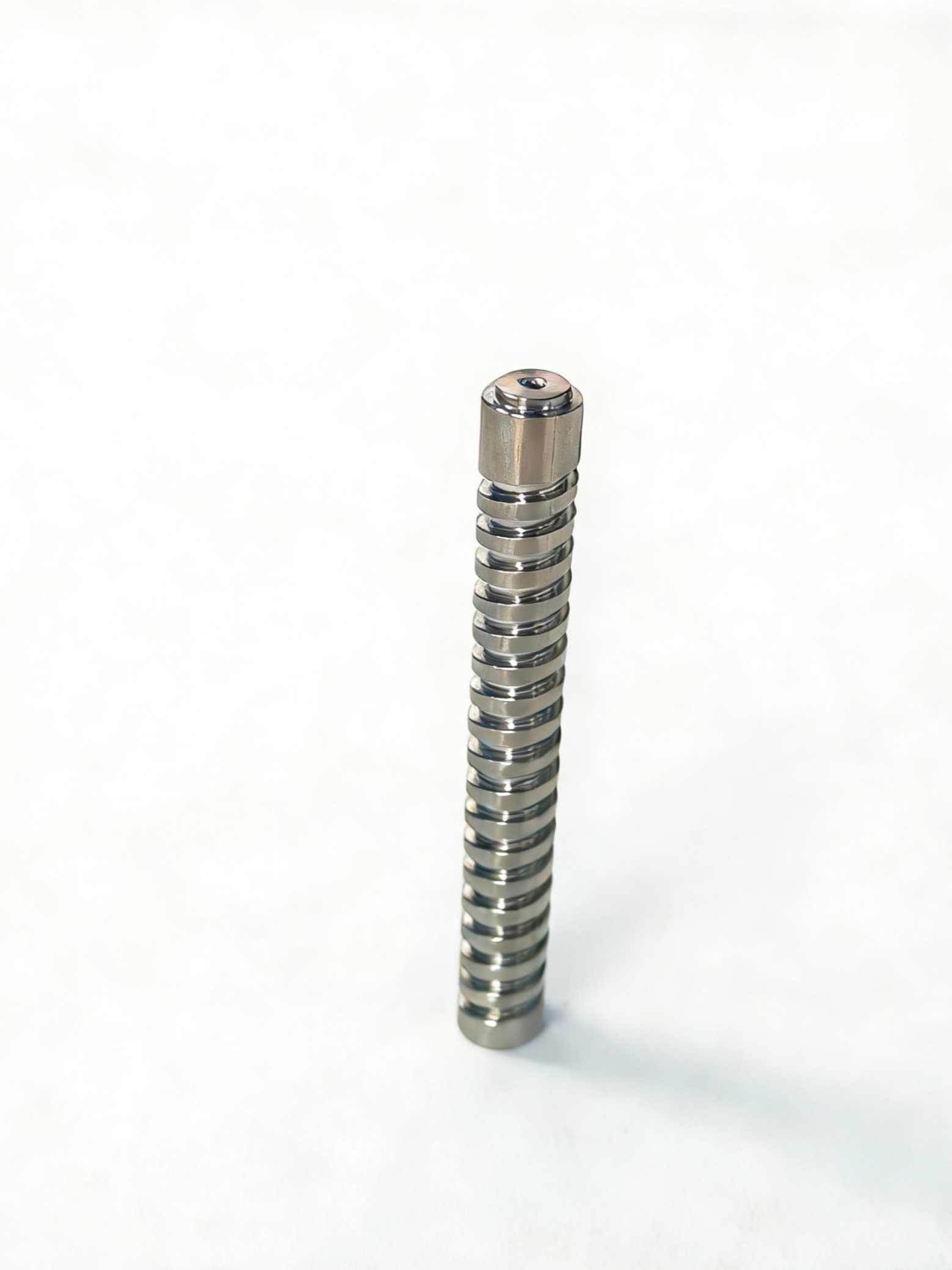

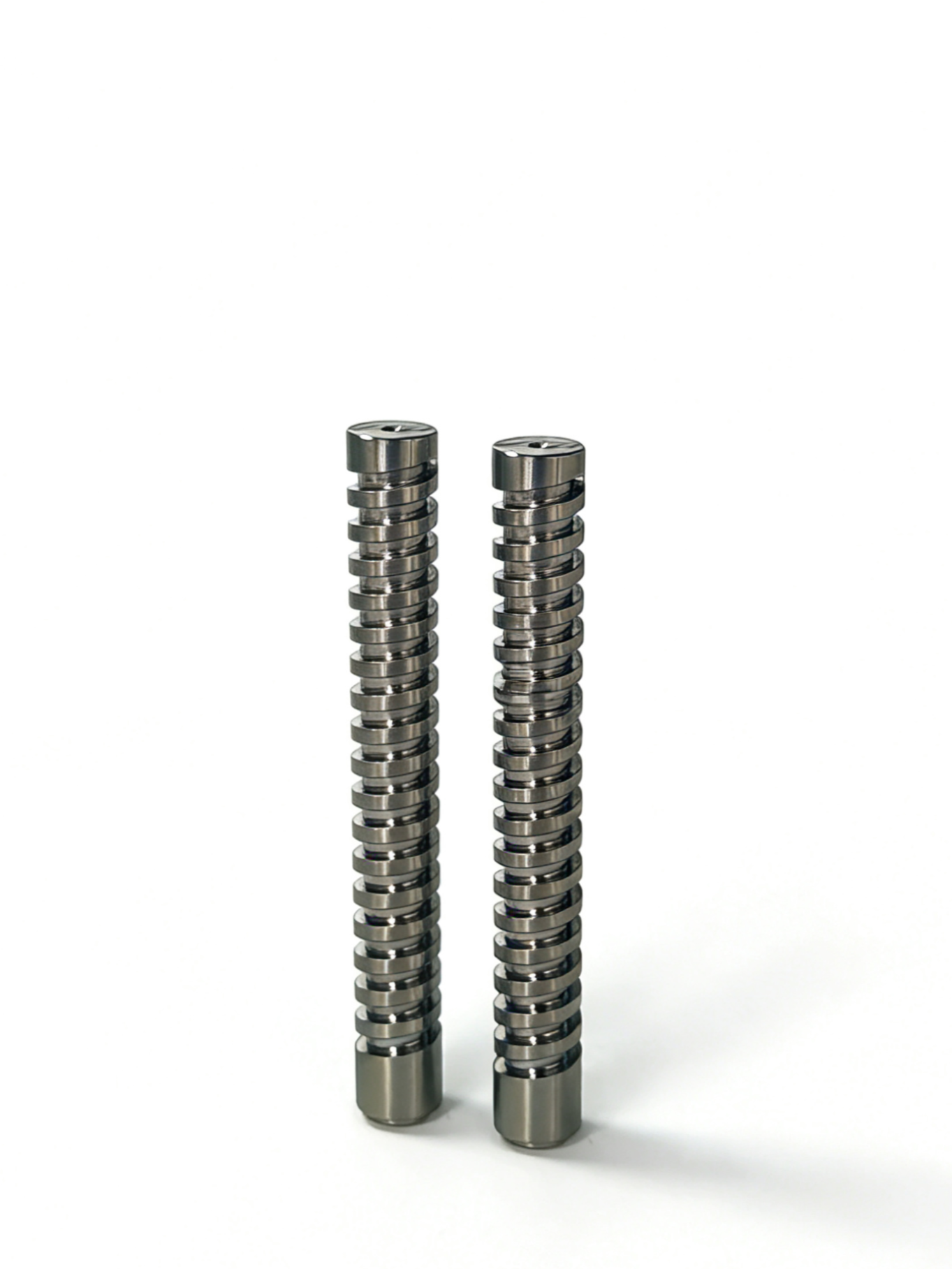

High-Precision CNC Machined Twin Helical Screw Shaft

This twin helical screw shaft is manufactured from high-strength metal materials using CNC precision machining. It features uniform helical geometry, high dimensional accuracy, and excellent wear resistance. Designed for high-load and high-speed applications, it is widely used in extrusion equipment, transmission systems, and automation machinery. Custom designs based on drawings or samples are available.

  • CNC precision machining ensures consistent helical profiles

  • High concentricity design for smooth and stable operation

  • Superior surface finish reduces friction and wear

  • Multiple material options for various working conditions

  • Customizable dimensions for diverse equipment applications

Category:
Description

Precision-Engineered Twin Helical Screw Shaft

Our twin helical screw shaft is crafted from high-strength metals using advanced CNC machining. Each shaft features uniform helical geometry, high concentricity, and superior surface finish, ensuring smooth, stable, and reliable operation in demanding industrial environments.

Durable & Wear-Resistant Construction

Designed for high-load and high-speed applications, this screw shaft provides excellent wear resistance and long service life. Optimized machining processes reduce friction, improve efficiency, and maintain precise tolerances across repeated use.

Customizable for Your Equipment Needs

We support custom designs based on your technical drawings or sample parts. Dimensions, materials, and surface treatments can be tailored to meet the requirements of extrusion machines, transmission systems, and automation equipment.

Versatile Material Options

Available in multiple metal alloys and heat treatments, our shafts are suitable for diverse working conditions, including heavy-duty industrial and precision mechanical environments.

Applications

Widely used in:

  • Extrusion and injection molding machinery

  • Transmission and power transfer systems

  • Industrial automation equipment

  • High-precision mechanical assemblies
